Adaptable Workstations

M-Series™ Accessories and Power Packs

Our M-Series™ power packs offer versatile solutions with options for power, data, and gas services that can be pre-installed directly into the frame. This integrated approach ensures a streamlined and uncluttered work center, free from compromise.

1/3
2/3
3/3

M1/M2 Applications

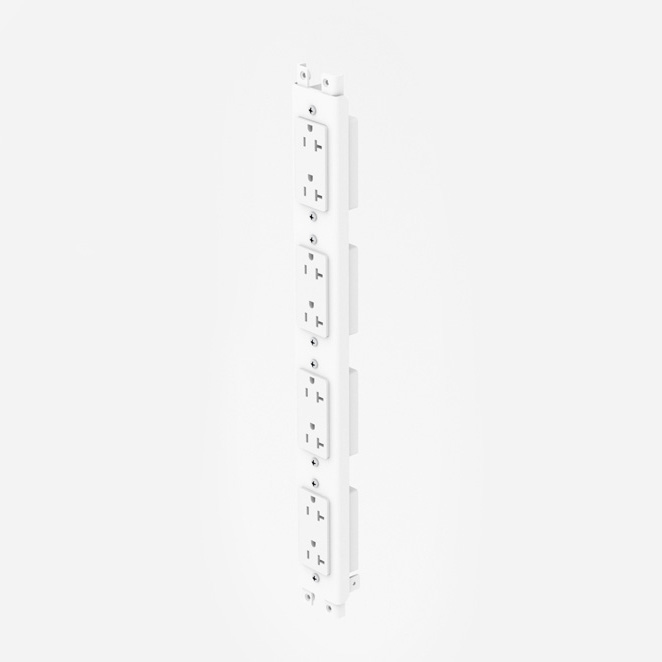

Style 1A

Pre-wired 120VAC 20A duplexes on single circuit. Includes single 12AWG 3C power cable with L5-20P plug extending out the top of the post. Specify duplex color (white, red, orange, brown, grey) and qty (1-4)

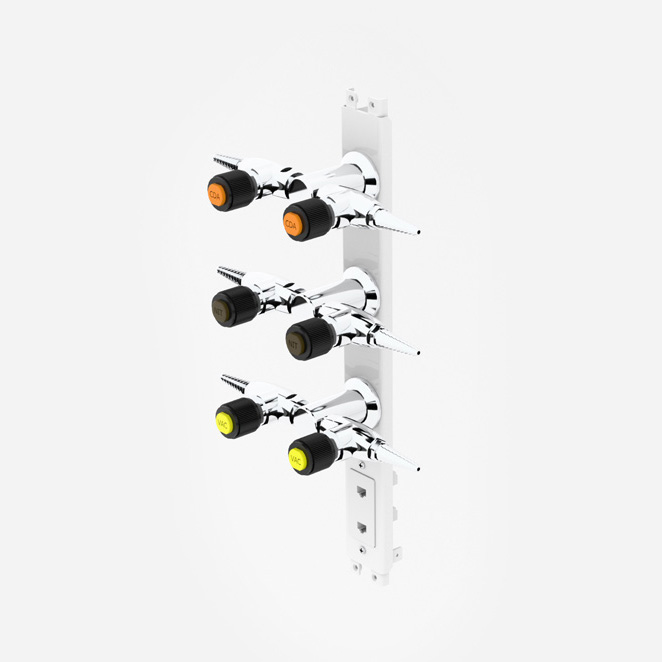

Style 2A

Includes one (1) pre-plumbed gas hose and hose end per valve. Specify gas service valve qty (1-3), service type (Air, Vacuum, Argon, Nitrogen, CDA, CO2), and single (90°) or dual (180°) outlet valve(s). Includes two (2) pre-wired RJ45 ethernet jacks. Hose and data cable extend out the top of post.

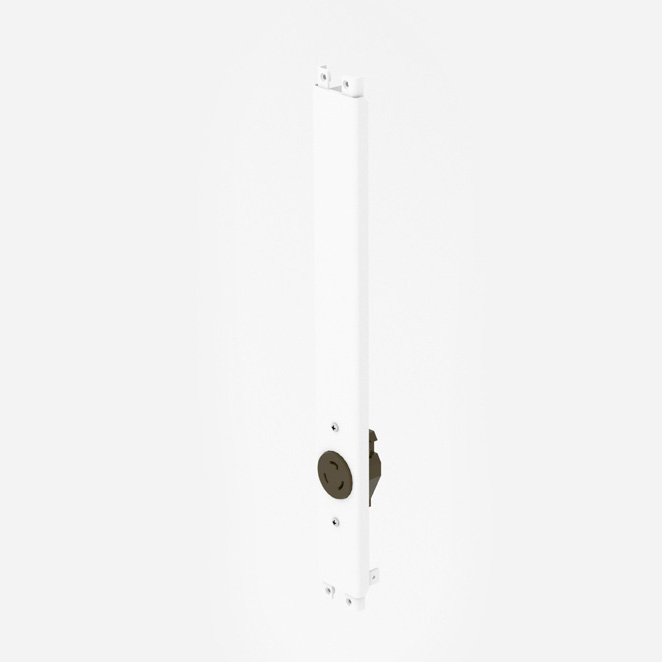

Style 3A

Pre-wired 208VAC L6-20R receptacle. Includes 12AWG 3C power cable with L6-20P plug extending out the top of the post.

get started today

Contact Our Lab Planning Specialists

M3/M4 Applications

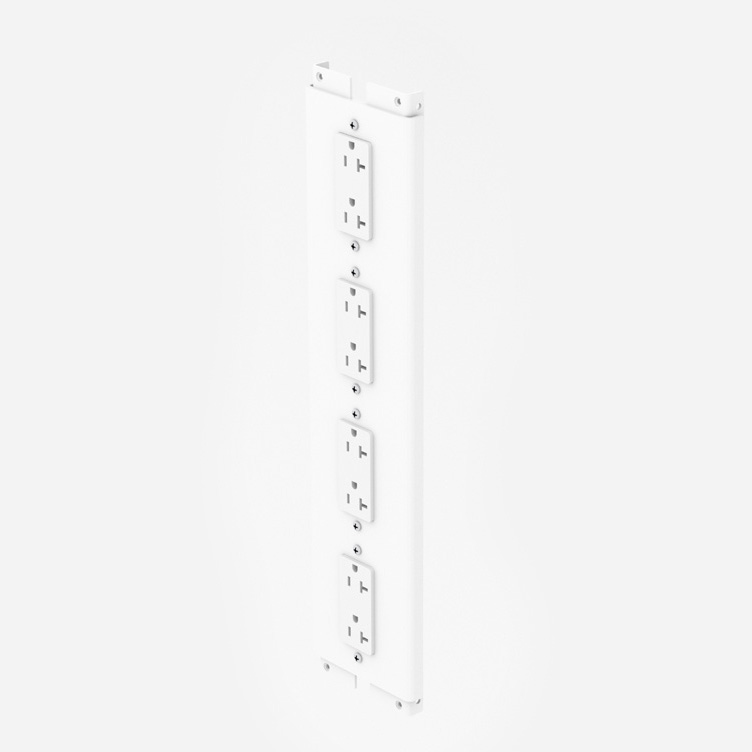

Style 1B

Pre-wired 120VAC 20A duplexes on single circuit. Includes single 12AWG 3C power cable with L5-20P plug extending out the top of the post. Specify duplex color (white, red, orange, brown, grey) and qty (1-4). Two circuits (2 cords) may be available*.

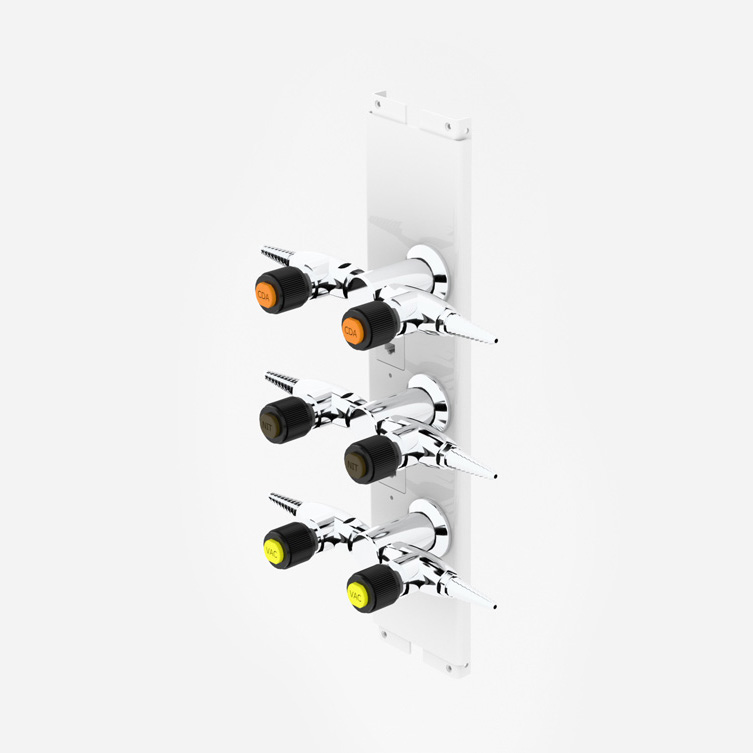

Style 2B

Includes one (1) pre-plumbed gas hose and hose end per valve. Specify gas service valve qty (1-3), service type (Air, Vacuum, Argon, Nitrogen, CDA, CO2), and single (90°) or dual (180°) outlet valve(s). Includes four (4) pre-wired RJ45 ethernet jacks. Hose and data cable extend out the top of post.

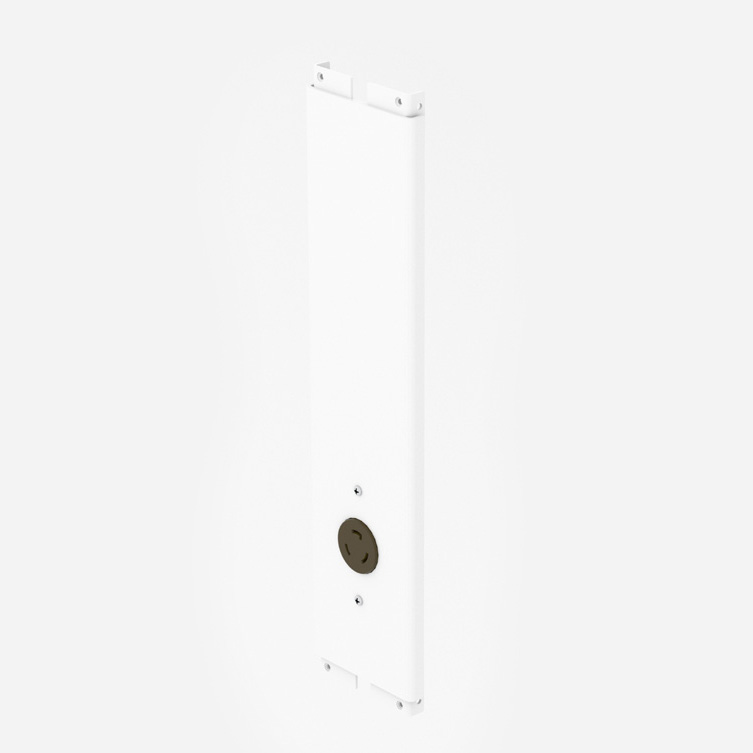

Style 3B

Pre-wired 208VAC L6-20R receptacle. Includes 12AWG 3C power cable with L6-20P plug extending out the top of the post.

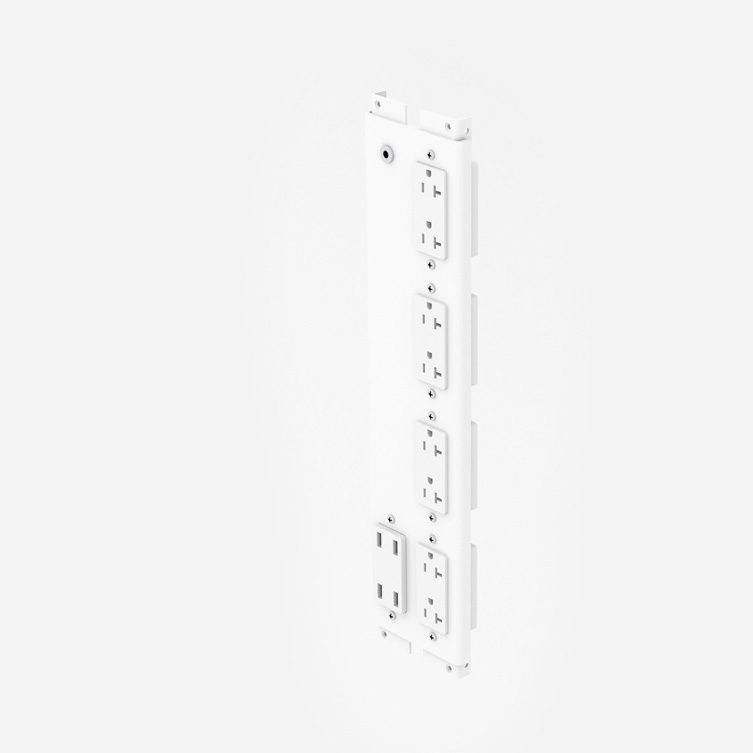

Style 4B

Pre-wired 120VAC 20A duplexes on single circuit. Includes single 12AWG 3C power cable with L5-20P plug extending out the top of the post. Specify duplex color (white, red, orange, brown, grey) and qty (1-4). Two circuits (2 cords) may be available*. Single 4-port USB power duplex. Integrated 24v 60W power w/ 5.5mm jack for LED undershelf light.

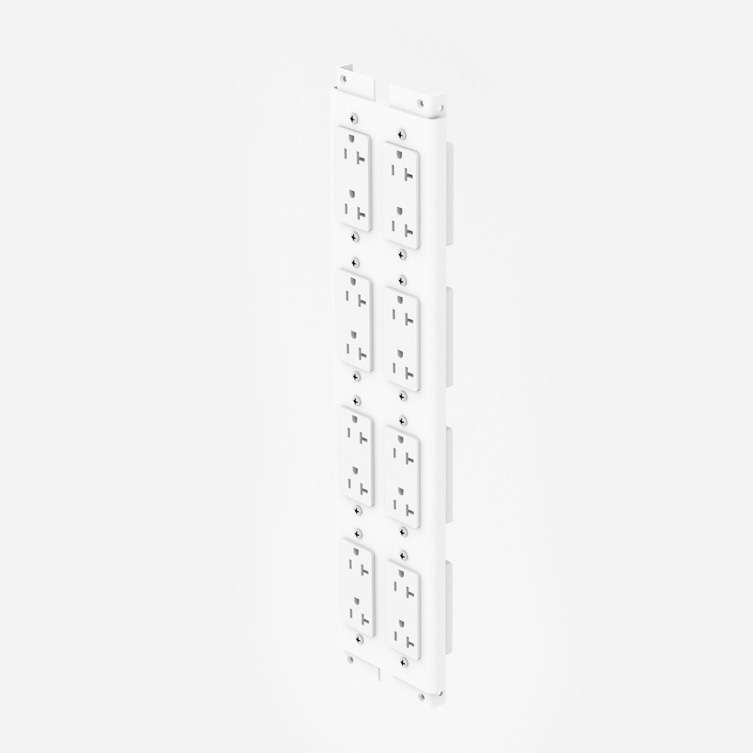

Style 5B

Pre-wired 120VAC 20A duplexes. Includes 12AWG 3C power cable(s) with L5-20P plug(s) extending out the top of the post. Specify duplex color (white, red, orange, brown, grey) and qty (5-8). Two circuits (2 cords) may be available*.
