ADA-Compliant Benchtop Fume Hoods

5SA Series

Designed to support accessible laboratory environments, 5SA ADA-compliant benchtop fume hoods position electrical controls and optional service fixtures within reach of seated users. The accessible configuration combines the performance and durability of the 5SA Series with a workspace designed around ADA accessibility requirements.

Dimensions

Standard widths: 48″, 60″, 72″, and 96″

Standard depths: 31 3/8″ (A), 37 3/8″ (B), and 41 3/8″ (C)

Standard fume hood height: 53″

Designed for use with accessible base cabinet/work surface configurations

30 1/2″ sash opening with a 36″ sight line

See dimensional data and drawings below for model-specific details

Included Features

Designed to support ADA-accessible laboratory configurations

Electrical controls and optional service fixtures positioned within reach of seated users

Available in Constant Air Volume (CAV) and Variable Air Volume (VAV) configurations

Standard electrical package includes vapor-proof LED lighting, light switch/120V receptacle, and one 120V duplex receptacle

Stainless steel flush-sill bottom airfoil

Frameless sash with laminated safety glass and vented finger pull

Integrated wire management chase on both sides of the fume hood

Removable interior and exterior panels provide access to service valves

Poly-resin glass white, metal-free interior liner

UL 1805 Listed and designed to meet ASHRAE 110-95 performance requirements as manufactured

Available Options

Vertical, horizontal, split and combination sash configurations

Configurable service fixtures positioned for accessible operation

Pre-piped and pre-wired configurations

Compatible accessible base cabinet and knee-space configurations

Phenolic or epoxy countertops and epoxy sinks

Ceiling enclosures

Airflow monitors and alarms

Additional fume hood accessories available based on project requirements

Manuals & Product Documentation

DOWNLOAD USER MANUAL

View Catalog

Shop In-Stock Products

Why Choose 5SA ADA-Compliant Fume Hoods

Designed to support accessible laboratory environments

Electrical and service controls positioned for easier seated access

Coordinates with accessible casework and work surface configurations

Multiple widths and depths for different laboratory layouts

Flexible sash, airflow, utility, and accessory configurations

Durable, chemical-resistant materials designed for laboratory environments

Designed and manufactured in Southern California

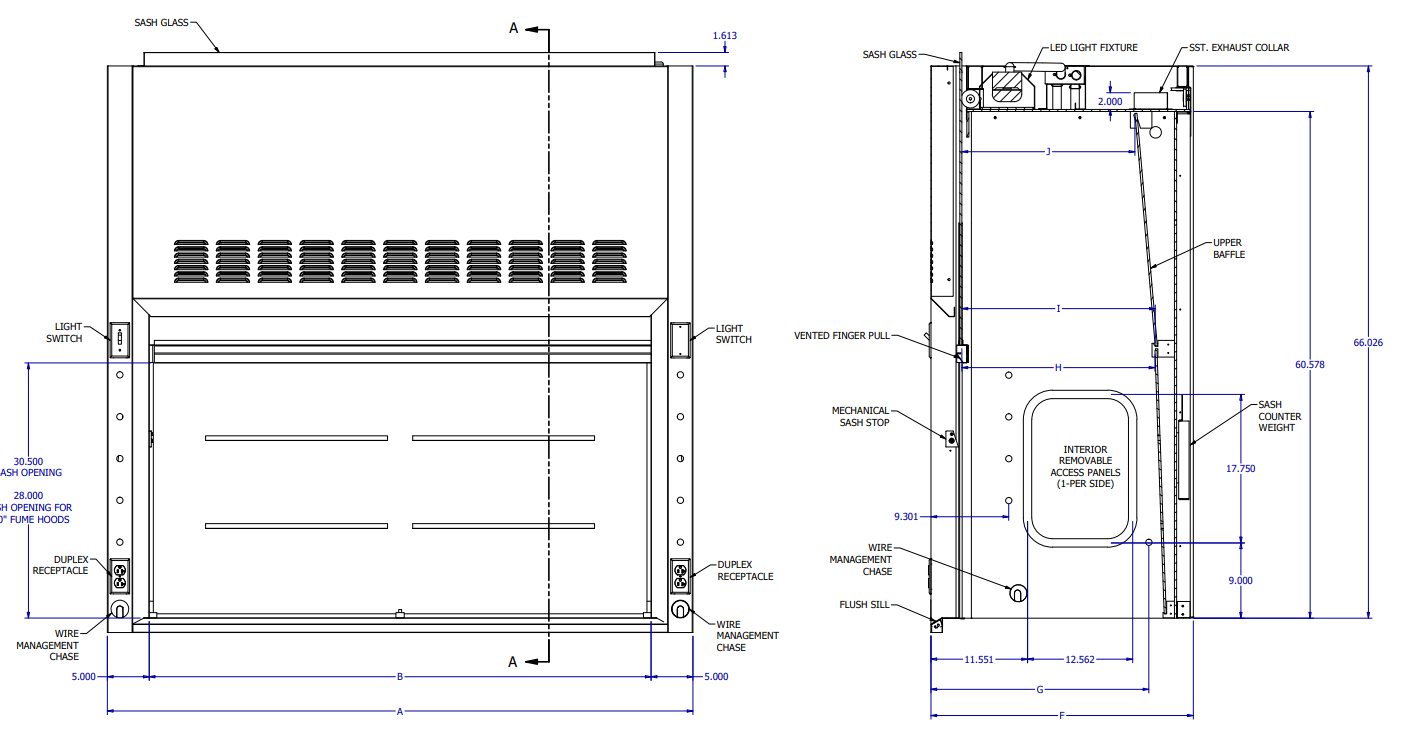

5SA ADA-Compliant Fume Hood Dimensional Data

Width	“A” Depth 31-3/8″	“B” Depth 37-3/8″	“C” Depth 41-3/8″	Height
48″	5SA48A-ADA	5SA48B-ADA	5SA48C-ADA	53″
60″	5SA60A-ADA	5SA60B-ADA	5SA60C-ADA	53″
72″	5SA72A-ADA	5SA72B-ADA	5SA72C-ADA	53″
96″	5SA96A-ADA	5SA96B-ADA	5SA96C-ADA	53″
