M1 Modular Lab Bench

M-Series®

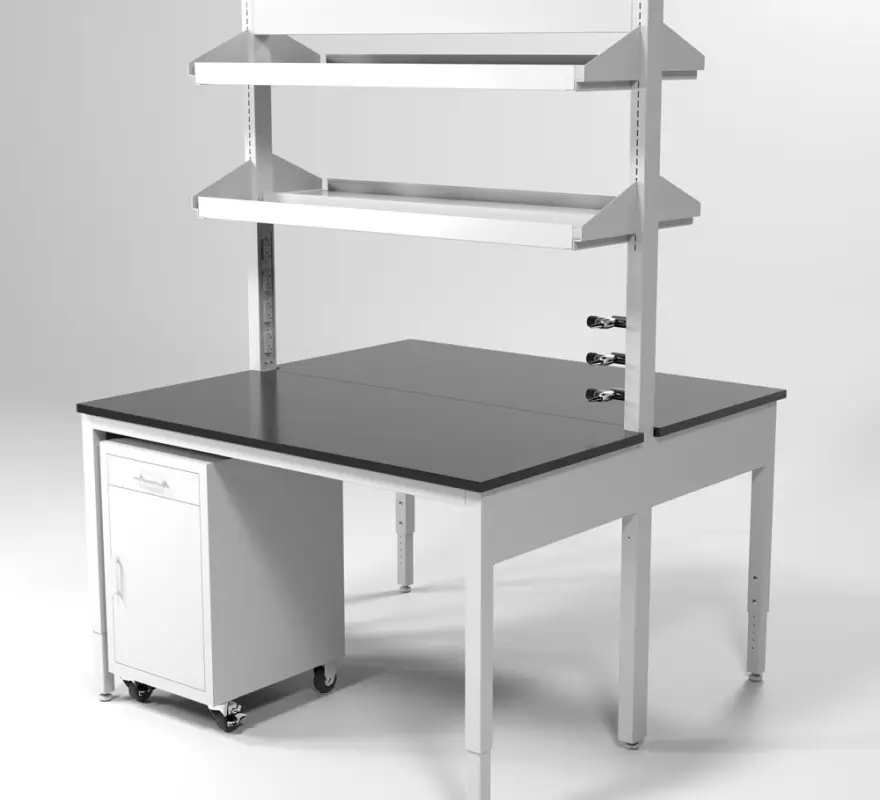

The M1 modular lab bench is a configurable, single-sided workstation designed for laboratories that need durable performance and adaptable workspace. Built with 14-gauge 2″ × 3″ rear posts and 2″ × 2″ front legs, the M1 supports up to 1,200 lbs. of combined system load and is available in multiple widths and depths to fit a range of laboratory layouts and workflows.

Dimensions

Configuration: Single-sided

Available widths: 36″, 48″, 60″, and 72″

Available depths: 30″ or 36″

For complete dimensional details and model-specific drawings, download the M1/M2 cut sheet.

Included Features

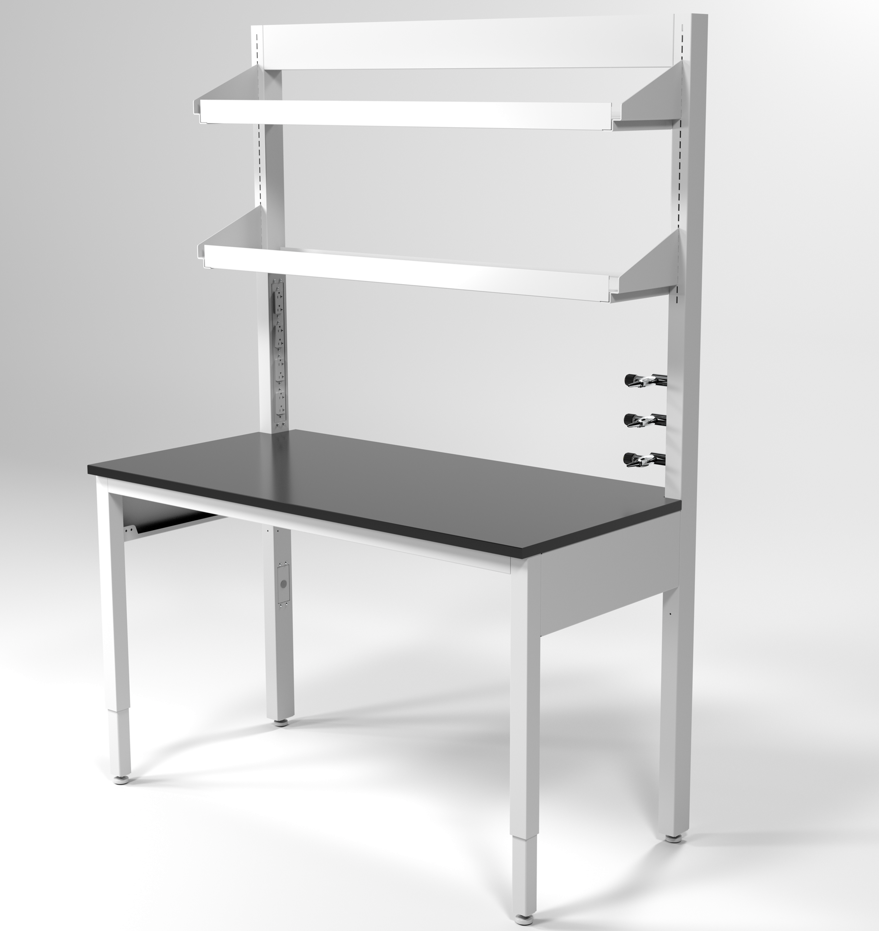

Single-Sided Configuration — Designed for perimeter and wall-based laboratory layouts

Durable Steel Construction — 14-gauge 2″ × 3″ rear posts with 2″ × 2″ front legs

Adjustable Work Surface — Six-position height adjustment in 1″ increments

1,200-lb System Capacity — Supports demanding laboratory equipment and workflows

Lower Shelf Capacity — Up to 200 lbs.

Upper Shelf Capacity — Up to 150 lbs.

UL 962 and SEFA 10 compliant

Available Options

Upper Shelf Kits — Available in multiple sizes and configurations for flexible storage and workflow needs

Lower Shelf Kits — Adds accessible storage below the work surface

Integrated Power, Data & Gas Services — Services can be incorporated into the upright posts for organized utility distribution

Chemical-Resistant Phenolic Work Surfaces — Durable work surfaces designed for demanding laboratory environments

Side Apron Option — Accommodates alternate work surface depths

Suspended Cabinets — Available in multiple sizes and styles for integrated under-bench storage

Mobile Cabinets — Flexible storage that can be repositioned as workspace needs change

Horizontal Power Strip Kits — Adds convenient power access along the workstation

Bin Box Mount Brackets — Supports organized, accessible component storage

Manuals & Product Documentation

DOWNLOAD USER MANUAL

DOWNLOAD REVIT FILE

DOWNLOAD CAD FILE

DOWNLOAD CUTSHEET

DOWNLOAD CHOICE SHEET

View Catalog

Shop In-Stock Products

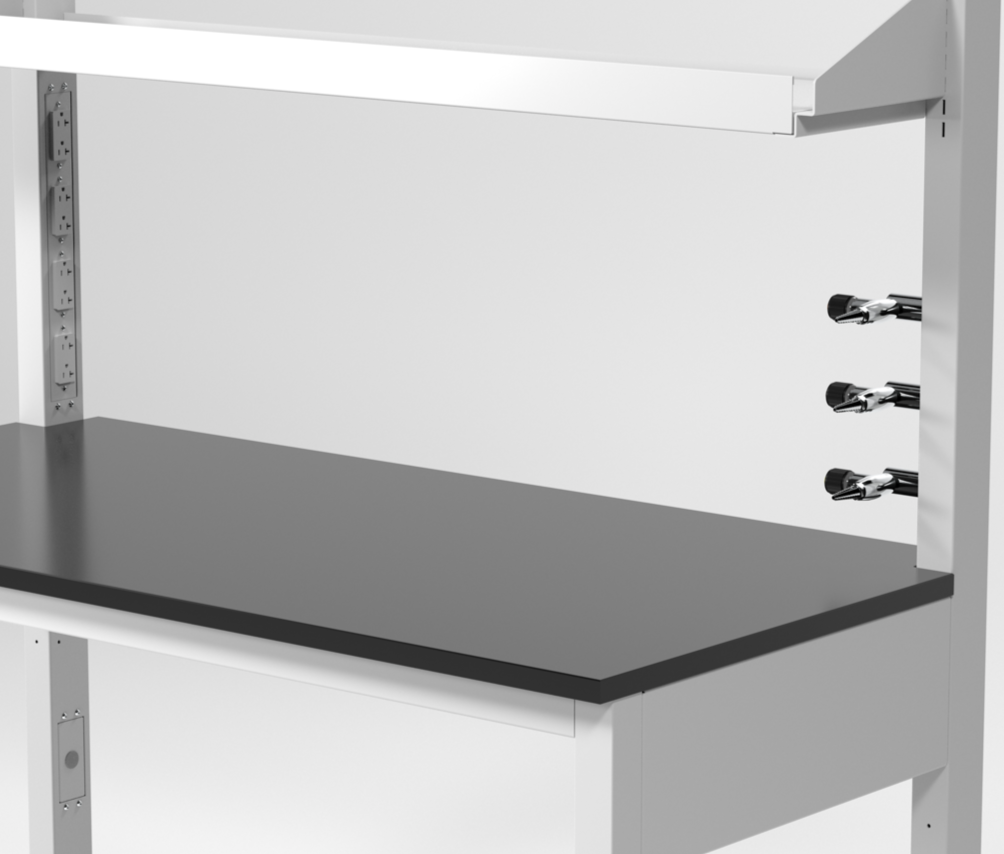

Integrated Power, Data & Utilities

The M1 can be configured with integrated power, data, and specialty gas services routed through the workstation uprights to keep utilities accessible and organized.

Integrated power, data, and gas services support an organized workstation

Up to 5 duplex receptacles per power cord

Up to 1 power cord per post

Configurable data and utility options

Specialty gas services available based on project requirements

Why Choose the M1 Modular Lab Bench

Single-Sided Configuration — Designed for perimeter and wall-based laboratory layouts where efficient use of space matters.

Durable Construction — 14-gauge 2″ × 3″ rear posts provide reliable structural support for everyday laboratory workflows.

Adjustable Work Height — Six-position height adjustment in 1″ increments supports a range of seated and standing work requirements.

Highly Configurable — Shelving, storage, work surfaces, power, data, and specialty gas services can be tailored to project-specific needs.

Project Gallery

Browse our Project Gallery to see how labs across biotech, pharmaceutical, research, and education have put the M1 Series modular lab bench to work in real-world installations.
