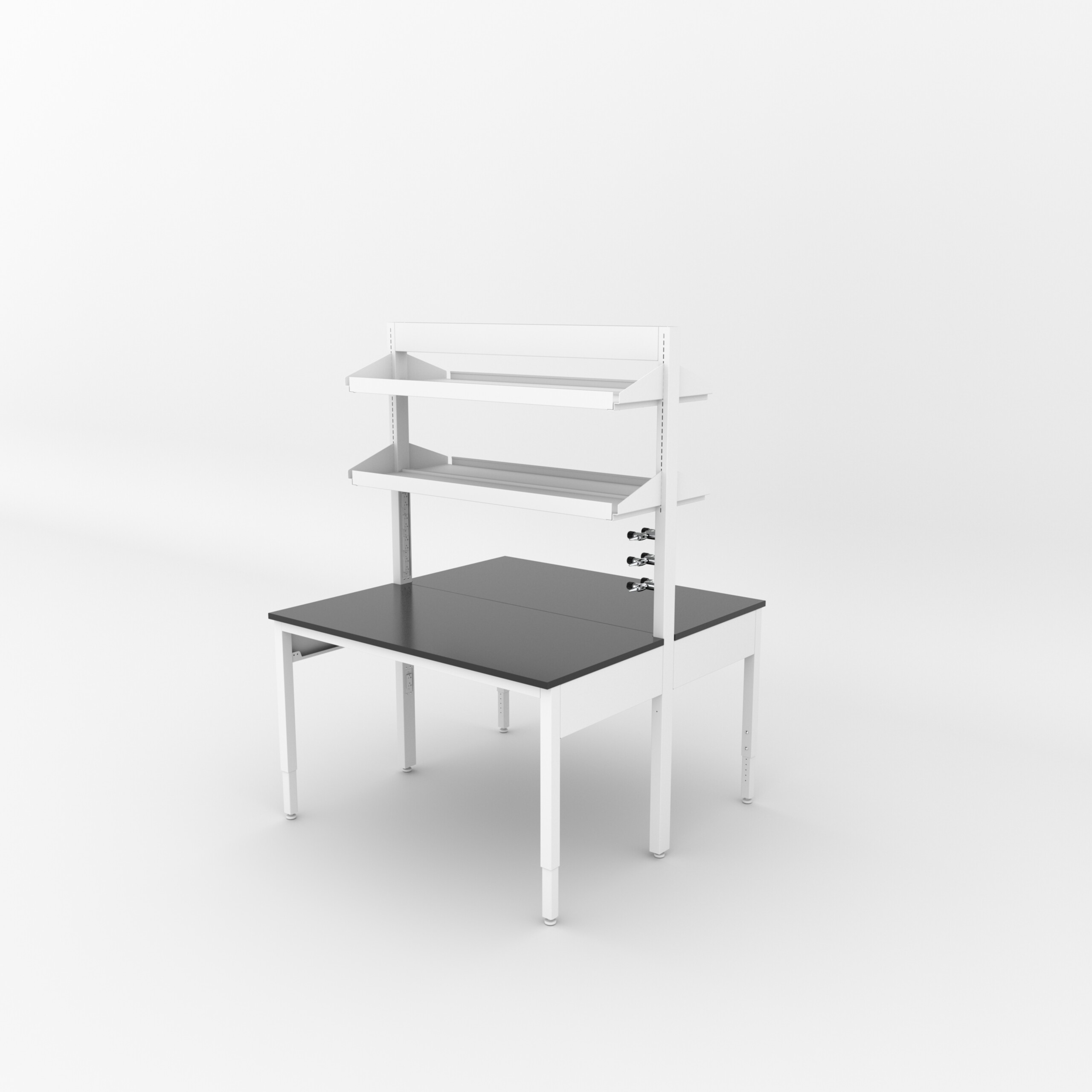

M2 Modular Lab Bench

M-Series®

The M2 modular lab bench is a configurable, double-sided workstation designed for island-style laboratory layouts and shared work environments. Built with 14-gauge 2″ × 3″ rear posts and 2″ × 2″ front legs, the M2 supports up to 1,200 lbs. per side / 2,400 lbs. total and can be configured with shelving, storage, power, data, and specialty gas services.

Dimensions

Configuration: Double-sided

Available widths: 48″, 60″, and 72″

Available depths: 60″

Adjustable work surface height: 30-3/4″ to 36-3/4″ in 1″ increments

For complete dimensional details and model-specific drawings, download the M1/M2 cut sheet.

Included Features

Double-Sided Configuration — Designed for island-style and shared laboratory workspaces

Durable Steel Construction — 14-gauge 2″ × 3″ rear posts with 2″ × 2″ front legs

Adjustable Work Surface — Six-position height adjustment in 1″ increments

2,400-lb Total System Capacity — Supports up to 1,200 lb. per side for demanding laboratory equipment and workflows.

Lower Shelf Capacity — Up to 200 lbs.

Upper Shelf Capacity — Up to 150 lbs.

Assembly Required

UL 962 and SEFA 10 compliant

Available Options

Upper Shelf Kits — Available in multiple sizes and configurations for flexible storage and workflow needs

Lower Shelf Kits — Adds accessible storage below the work surface

Integrated Power, Data & Gas Services — Services can be incorporated into the upright posts for organized utility distribution

Chemical-Resistant Phenolic Work Surface — Durable work surface option designed for laboratory environments

Side Apron Option — Accommodates alternate work surface depths

Suspended Cabinets — Available in multiple sizes and styles for integrated under-bench storage

Mobile Cabinets — Flexible storage that can be repositioned as workspace needs change

Horizontal Power Strip Kit — Adds convenient power access along the workstation

Bin Box Mount Bracket — Supports organized, accessible component storage

Manuals & Product Documentation

DOWNLOAD USER MANUAL

DOWNLOAD REVIT FILE

DOWNLOAD CAD FILE

DOWNLOAD CUTSHEET

DOWNLOAD CHOICE SHEET

Learn More About the Products

Shop In-Stock Products

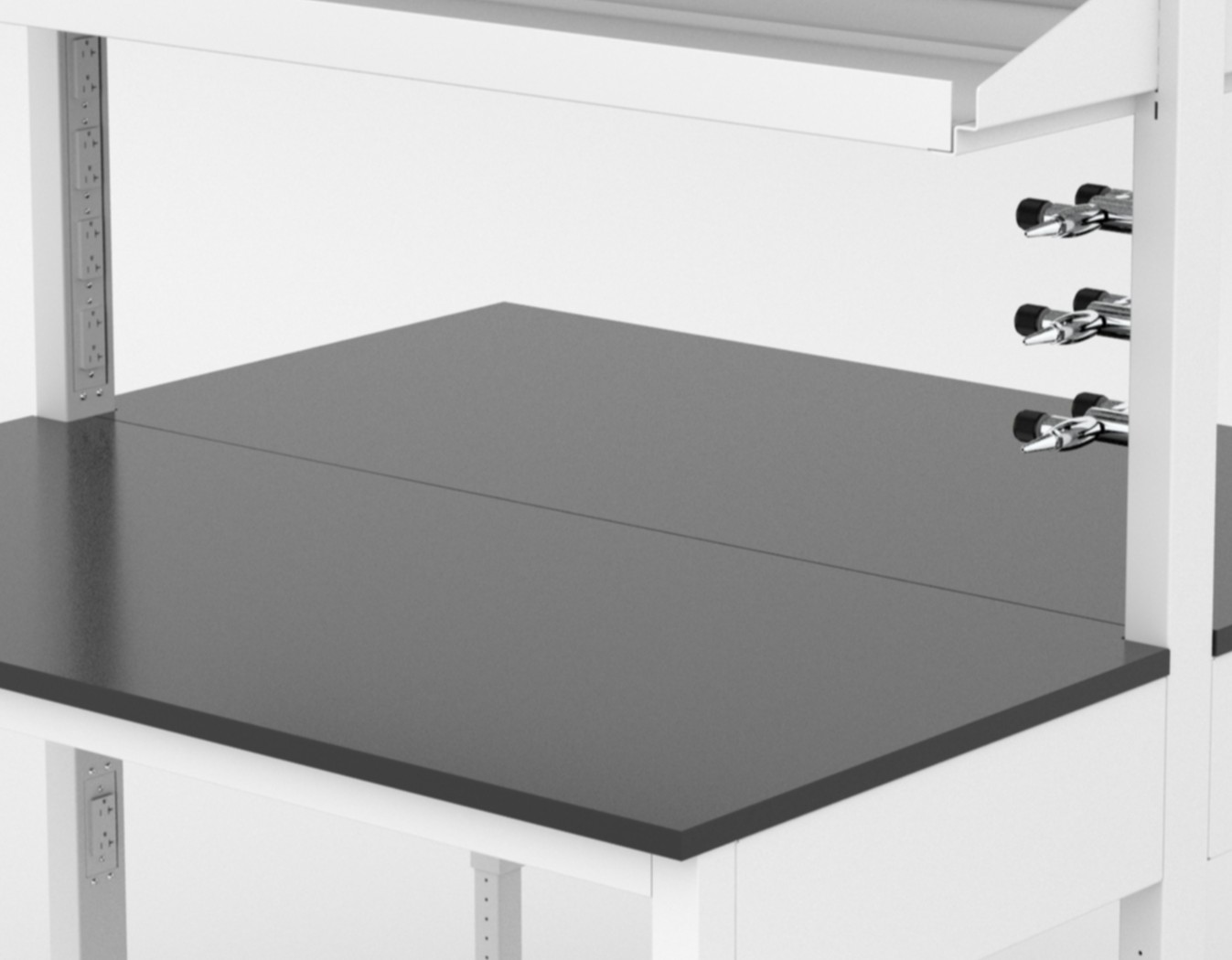

Integrated Power, Data & Utilities

The M2 can be configured with integrated power, data, and specialty gas services routed through the workstation uprights, helping keep connections accessible and organized across a double-sided workspace.
