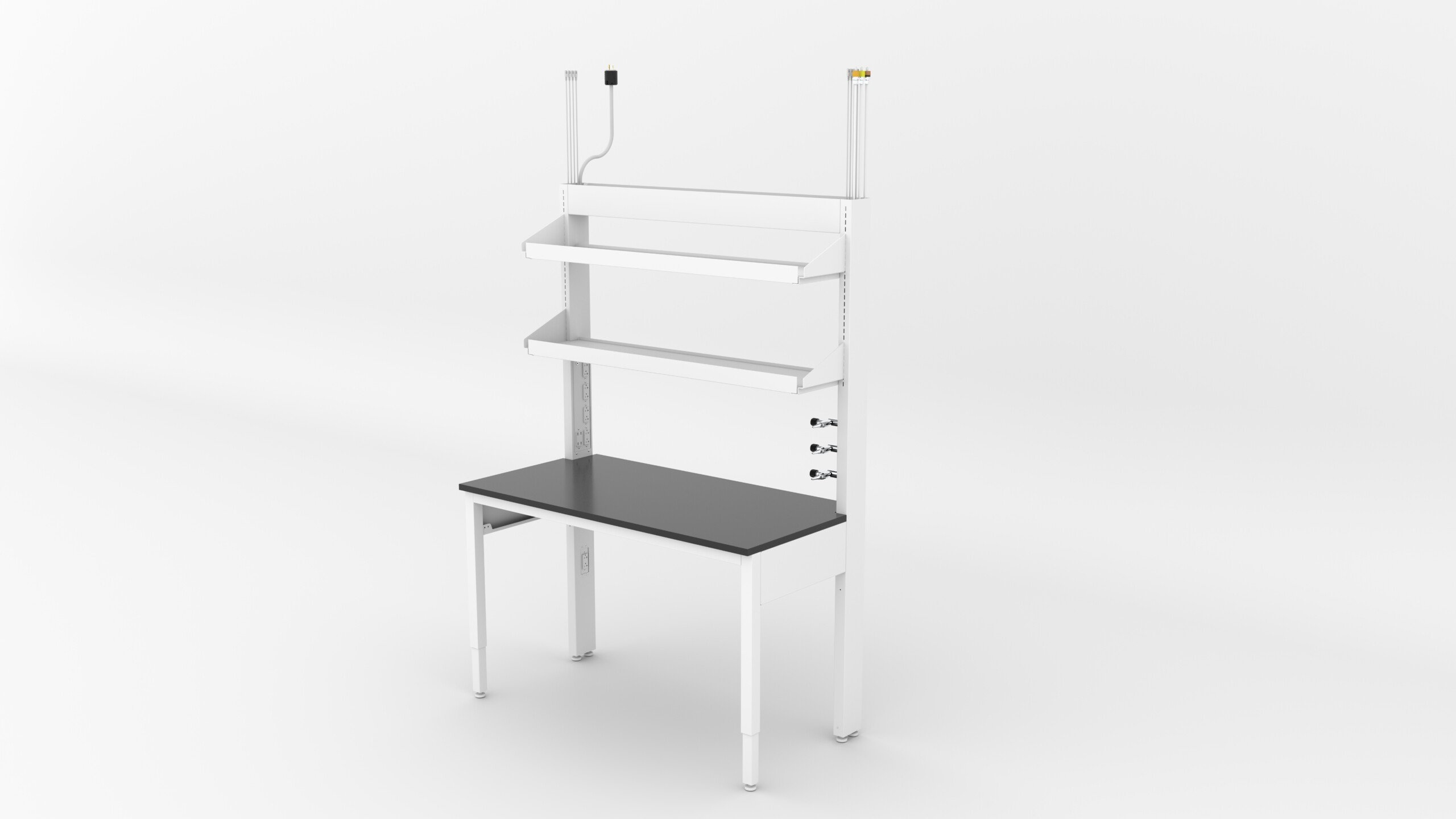

M3 Modular Lab Bench

M-Series®

The M3 modular lab bench is a heavy-duty, single-sided workstation designed for laboratories that need added structural support without sacrificing configurability. Built with 11-gauge 2″ × 5″ rear posts and 14-gauge 2″ × 2″ front legs, the M3 supports up to 1,200 lbs. of evenly distributed combined system load and can be configured with shelving, storage, power, data, and specialty gas services.

Dimensions

Widths: 36″, 48″, 60″, and 72″

Depths: 30″ or 36″

Adjustable work surface height: 30-3/4″ to 36-3/4″ in 1″ increments

For full dimensional details, download the M3/M4 cutsheet.

Included Features

Single-Sided Configuration — Designed for perimeter, wall-based, and equipment-intensive laboratory layouts

Heavy-Duty Steel Construction — Features 11-gauge 2″ × 5″ rear posts with 14-gauge 2″ × 2″ front legs

Adjustable Work Surface Height — Six-position adjustment supports changing users and workflow requirements

1,200-lb System Capacity — Supports demanding laboratory equipment and applications

200-lb Lower Shelf Capacity — Provides additional storage and equipment support below the work surface

150-lb Upper Shelf Capacity — Supports configurable above-bench storage and equipment placement

UL 962 and SEFA 10 compliant

Available Options

Upper Shelf Kits — Available in multiple sizes and styles for flexible storage and workflow needs

Lower Shelf Kits — Adds accessible storage below the work surface

Integrated Power, Data & Gas Services — Services can be incorporated into the upright posts for organized utility distribution

Chemical-Resistant Phenolic Work Surfaces — Durable work surface option designed for laboratory environments

Side Apron Option — Accommodates alternate work surface depths

Suspended Cabinets — Available in multiple sizes and styles for integrated under-bench storage

Mobile Cabinets — Flexible storage that can be repositioned as workspace needs change

Horizontal Power Strip Kit — Adds convenient power access along the workstation

Bin Box Mount Brackets — Supports organized, accessible component storage

Manuals & Product Documentation

DOWNLOAD USER MANUAL

DOWNLOAD REVIT FILE

DOWNLOAD CAD FILE

DOWNLOAD CUTSHEET

DOWNLOAD CHOICE SHEET

View Catalog

Shop In-Stock Products

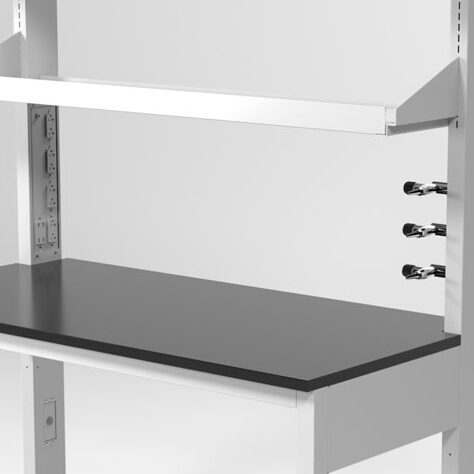

Integrated Power, Data & Utilities

The M3 can be configured with integrated power, data, and specialty gas services routed through the workstation uprights, helping keep connections accessible and the work surface organized.

Integrated power, data, and gas services support a cleaner, more organized workstation

Up to 8 above-countertop receptacles and 1 below-countertop receptacle

Up to 2 power cords per post with support for up to 4 circuits using a NEMA L14-20P configuration

Optional data ports and USB receptacles support modern laboratory equipment and connectivity

Specialty gas services can be incorporated into the upright system based on project requirements

Why Choose the M3 Modular Lab Bench

Heavy-Duty Construction — 11-gauge 2″ × 5″ rear posts and 14-gauge 2″ × 2″ front legs provide robust structural support for demanding laboratory applications.

1,200-lb System Capacity — Supports up to 1,200 lbs. of evenly distributed combined system load for equipment-intensive workflows.

Adjustable Work Height — Six-position height adjustment in 1″ increments supports a range of seated and standing work requirements.

Highly Configurable — Add shelving, storage, work surfaces, power, data, and specialty gas services to match project-specific needs.

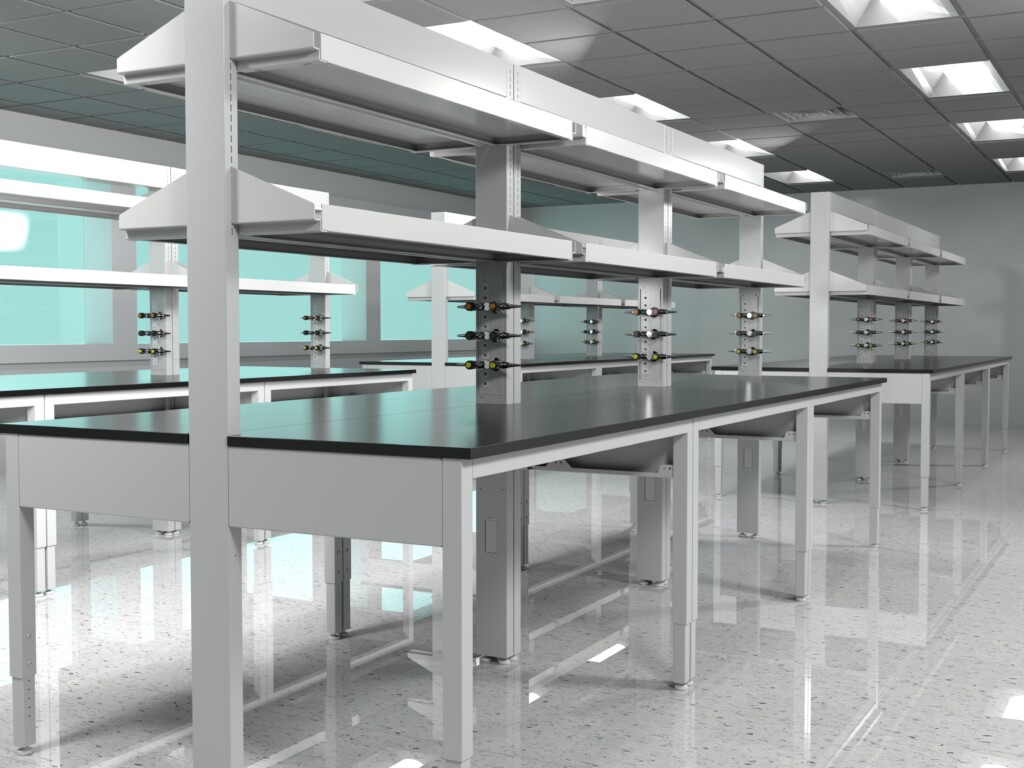

Project Gallery

See the M3 Series modular lab bench at work in real-world laboratory environments. From pharmaceutical research facilities to university teaching labs, the M3 adapts to the layout and workflow demands of each space.
