Products Adaptable Workstations and Table Systems M-Series® Workstations M4 Modular Lab Bench (M-Series®)

Adaptable Workstations

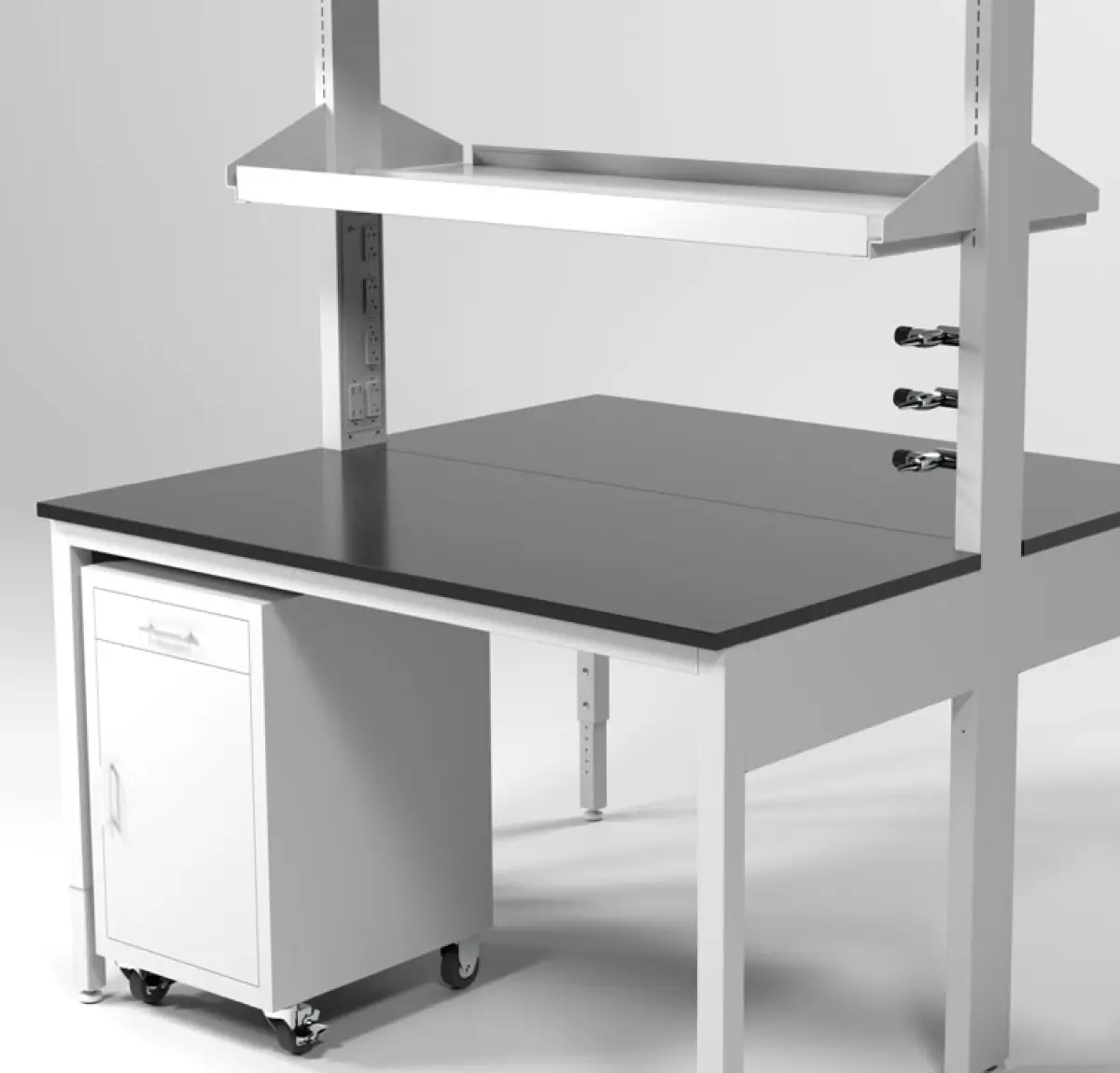

M4 Modular Lab Bench (M-Series®)

2”x 3” 11-gauge Powder-coated Steel Upright

Laboratories running island-style configurations need a double-sided workstation that handles heavy instrumentation on both faces without sacrificing access to power, data, or gas services. The M4 Series modular lab bench delivers that capability.

Part of the Hanson Lab Solutions M-Series™ line, the M4 is a double-sided 2×5″ post laboratory bench constructed with 11-gauge 2″ x 5″ rear posts and 14-gauge 2″ x 2″ front legs, supporting an evenly distributed load capacity of up to 1,200 lbs across the combined system. These table and bench systems are highly configurable and offer a full range of accessory options designed to meet a variety of project budgets.

Dimensions

36 x 30/36/60 (Frame Width: 35-3/4″, Worksurface Width: 36″)

48 x 30/36/60 (Frame Width: 47-3/4″, Worksurface Width: 48″)

60 x 30/36/60 (Frame Width: 59-3/4″, Worksurface Width: 60″)

72 x 30/36/60 (Frame Width: 71-3/4″ , Worksurface Width: 72″)

Height: Adjustable in 1″ increments (30-3/4″ to 36-3/4″)

Bench Configuration

M4: Double-sided frame, 60″ depth Steel construction: 11-gauge 2″ x 5″ rear posts with 14-gauge 2″ x 2″ front legs

Included Features

Double-sided frame (60″ depth)

Heavy-duty steel construction: 11-gauge 2″ x 5″ rear posts with 14-gauge 2″ x 2″ front legs

Six-position adjustable worksurface height (1″ increments) for ergonomic flexibility

High-capacity, evenly distributed load ratings:
• Up to 1,200 lbs (combined system)
• Up to 200 lbs (lower shelf)
• Up to 150 lbs (upper shelves)

Available Options

Upper Shelf Kits — Available in a range of sizes and configurations to support flexible storage and workflow optimization

Lower Shelf Kits — Integrated storage solutions designed for accessibility and efficient space utilization

Integrated Power, Data & Gas Services — Seamlessly incorporated into upright posts for clean, organized utility distribution

Chemical-Resistant Phenolic Work Surfaces — High-performance surfaces engineered for durability in demanding laboratory environments

Side Apron Option — Accommodates variable work surface depths while maintaining structural integrity and design continuity

Suspended Cabinets — Offered in multiple sizes and styles to provide adaptable, space-saving storage

Mobile Cabinets — Flexible storage solutions designed for mobility and reconfiguration within dynamic lab environments

Horizontal Power Strip Kits — Strategically positioned power access to support equipment and workflow efficiency

Bin Box Mount Brackets — Integrated storage for organized, accessible component management

Manuals & Product Documentation

DOWNLOAD CUTSHEET

DOWNLOAD REVIT FILE

DOWNLOAD ADJ HT

View Catalog

Shop In-Stock Products

Advantages of the M4 Modular Lab Bench

Heavy-duty, single-sides construction 11-guage 2″ x 5″ steel uprights supports up to 1,200 lbs of evenly distributed load.

Six-position height adjustment in 1″ increments (30-3/4″ to 36-3/4″) supports both seated analytical work and standing sample prep without changing hardware.

Knockdown design ships flat to reduce freight costs and assembles on-site with standard tools, accelerating installation timelines.

Pre-installed power, data, and gas services route through uprights to keep benchtops clear and eliminate additional contractor coordination.

Seven powder coat finishes and a shared M-Series® accessory system allow for seamless matching and future expansion

Field-upgradable service modules enable circuits, data ports, and gas lines to be added or reconfigured after installation without disassembly.

Power, Data, and Gas Service Options

Power, data, and gas service options can be pre-installed into the frame, resulting in a clean, uncompromised work center. Services can be upgraded or reconfigured in the field with minimal effort.
